RB/VB Belt Conveyors Technical Data

VB_Blackline_Control_Buttons_500x284

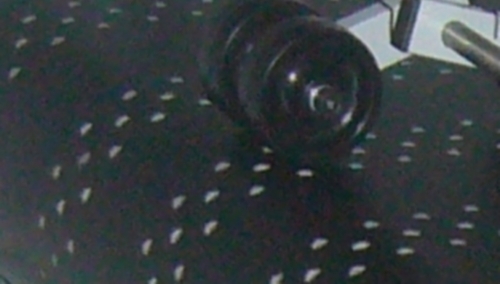

VB_Holes_Zoom_500x284
RB Motor Cylinder Belt Conveyor

Technical Specifications

VB and RB Vacuum and Rubber Belt Conveyors Technical Specifications

Transport System
Product/Paper Size: 514x700 mm Maximum (Recommended Max 500x700mm)
Speed: 20-60m/min Standard Version. Max 100m/min High Speed Version (available under request)
Suction/Blowing Power: Total Area Vacuum, Adjustable by Sectors
Special Accessories: Flexible bands, Wheels, Chains, Guides, Belt Moving Wheels

Motor System
No Vibration Rotary Cylinder

Electrical Specifications
Power Voltage: 110-240V; 50-60Hz
Power Consumption: Approx. 0,6Kw

Dimensions: 510x1100-1750 (WxL) Internal Standard. 510x2100mm (WxL) Special.
Feeding Height: 925mm (+/-15mm) Standard.
Personalized dimensions (W-L-H) available under request.

Weight: Approx. 70Kgs (VB 1750mm model)

SAFETY RULES 2006/42/EC - UNE/EN 12100 - UNE/EN 60204-1





Configurations/Applications/Solutions

Belt Conveyors configurations and solutions for inkjet printing, tape applicating and inspection systems

Explore Belt Conveyors Possibilities

Technical Features and Specifications

All our products fulfill EC directives and standards
